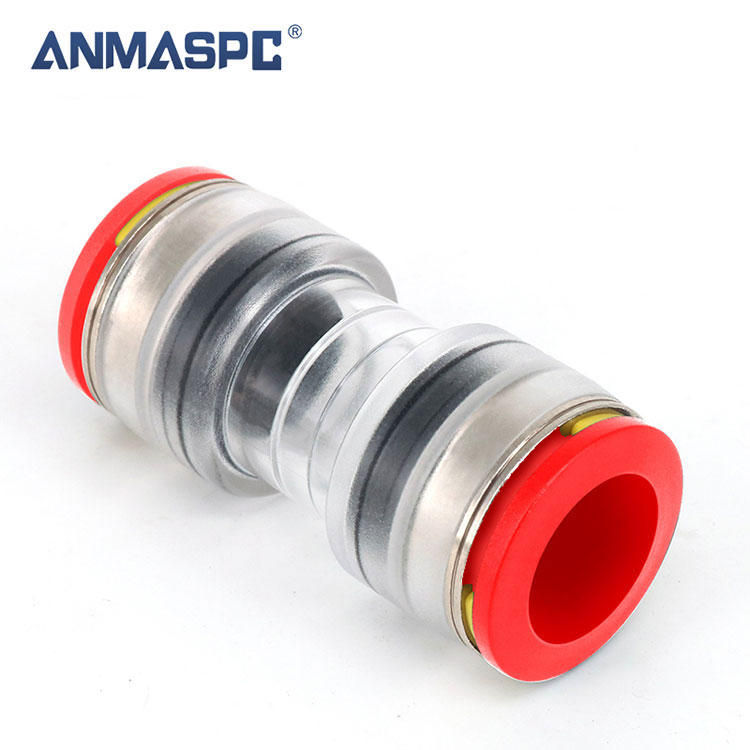

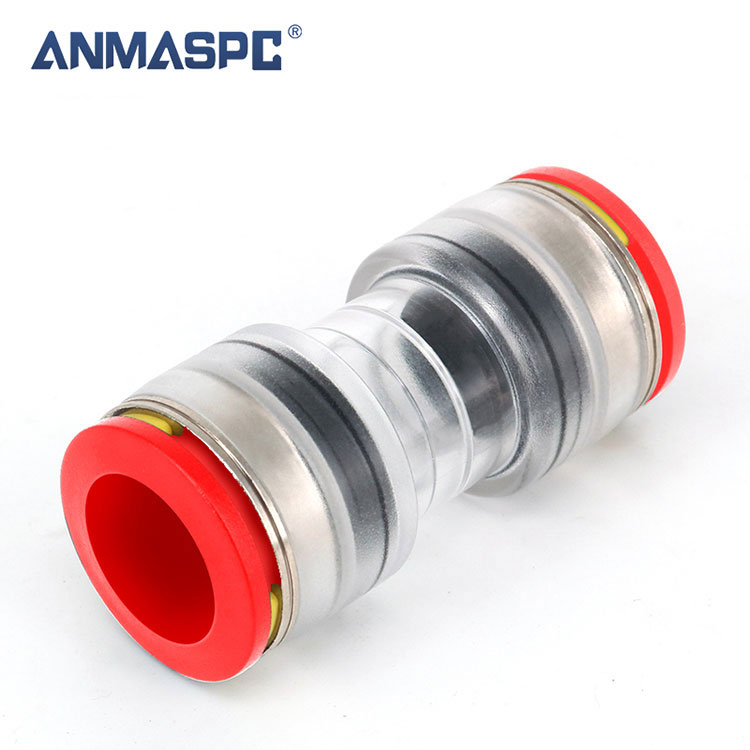

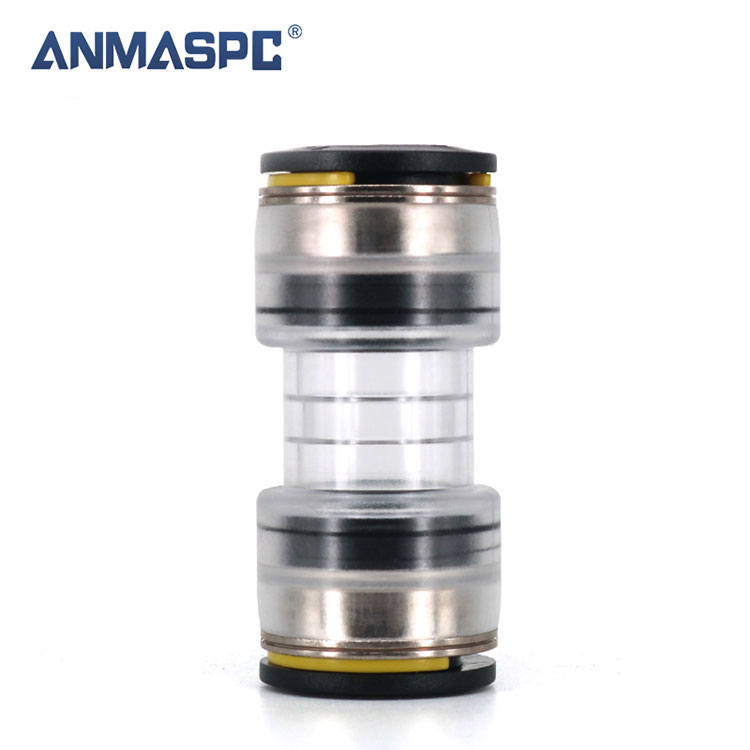

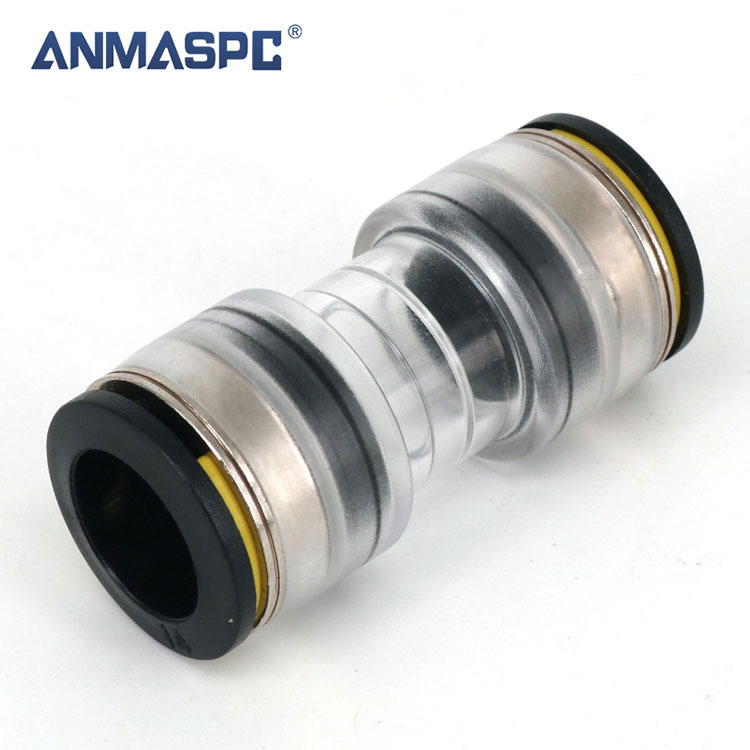

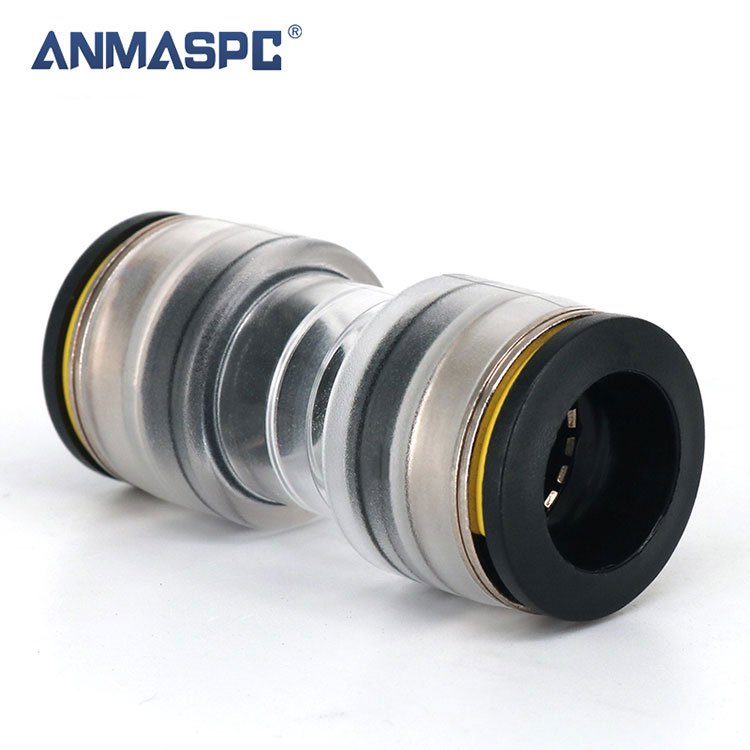

Cadmiae Alloy Recta Microduct Connector Accessories

Recta connexiones Microduct, quae bonam operam praestabunt. Transparens corpus permittit verificationem in medio ductus micro-ductuum positionis. Salus clips, notare evidentes, pre-installed sunt. Expertum & obtemperet EN 50411-2-8.

MARISQUE:

Safety clips includitur

② Push-apta technology

③ Pressura operans: max. 25 vectes

Descriptio

			Components
			1	Collet	POM
			2	Obstructio Clip	POM
			3	Cartridge	ZINK ALLOY
			4	Clausum Claw	SUS301/304
			5	Support Ring	POM
			6	Sigillum Ring	TEP
			7	Corpus	PC2807
Fit Tube
Materia pipe	HDPE.P.Nylon.Polyurethane
Diameter exterior organi	Φ3,Φ4,Φ5,Φ6,φ
Technical Parameter
Opus fluidis		Air
rectitudo		0.15~0.8MPa No Leak
Festum viverra		400N
Probatur pressura		2.5MPa
Operans pressura range		0~1.6MPa
Temperatura ambiens et fluida temperatus		-40~60℃
Installation Temperature		-10℃C/+50℃
Commendatur Flante Temperature		-15℃/+35℃
Gradus praesidium		IP68
UV repugnans gradus		F1
vis insertio		50N max (5kg)
Lifespan:		25 years
Signa:		EN 50411-2-8

Specificationes et Dimensiones

ANMASPC Code	Pipe OD/ID	Pipe OD/ID	Attenuatis hole
TPU3/2.1	3/2.1	3/2.1	2.1
TPU4/2.5	4/2.5	4/2.5	2.5
TPU4/2.8	4/2.8	4/2.8	2.8
TPU5/2.1	5/2.1	5/2.1	2.1
TPU5/3.5	5/3.5	5/3.5	3.5
TPU6/4	6/4	6/4	4
TPU7/3.5	7/3.5	7/3.5	3.5
TPU7/4	7/4	7/4	4
TPU7/5.5	7/5.5	7/5.5	5.5
TPU8/3.5	8/3.5	8/3.5	3.5
TPU8/6	8/6	8/6	6
TPU10/6	10/6	10/6	6
TPU10/8	10/8	10/8	8
TPU12/8	12/8	12/8	8
TPU12/10	12/10	12/10	10
TPU14/10	14/10	14/10	10
TPU14/12	14/12	14/12	12
TPU16/12	16/12	16/12	12
TPU16/13	16/13	16/13	13
TPU16/14	16/14	16/14	14

Super Dimensiones


Model	A	B	C	D	E	F
TPU03	31.9	6.9	10	11.1	3.2	2.1
TPU04	31.9	6.9	10	11.1	4.2	2.8/2.5
TPU05	35.4	8.9	12	12.8	5.2	3.5/2.1
TPU06	35.4	8.9	12	12.8	6.2	4.0
TPU07	41.0	11.5	14.1	15.4	7.2	5.5/4/3.5
TPU08	41.0	11.5	14.1	15.4	8.2	6/3.5
TPU10	42.0	14.0	17.5	18.3	10.2	08/06
TPU12	49.5	15.8	19.2	20.7	12.2	10/08
TPU14	50.5	18.0	22.2	23	14.3	12/10
TPU16	55.0	20.0	24.7	25.1	16.2	14/13/12
